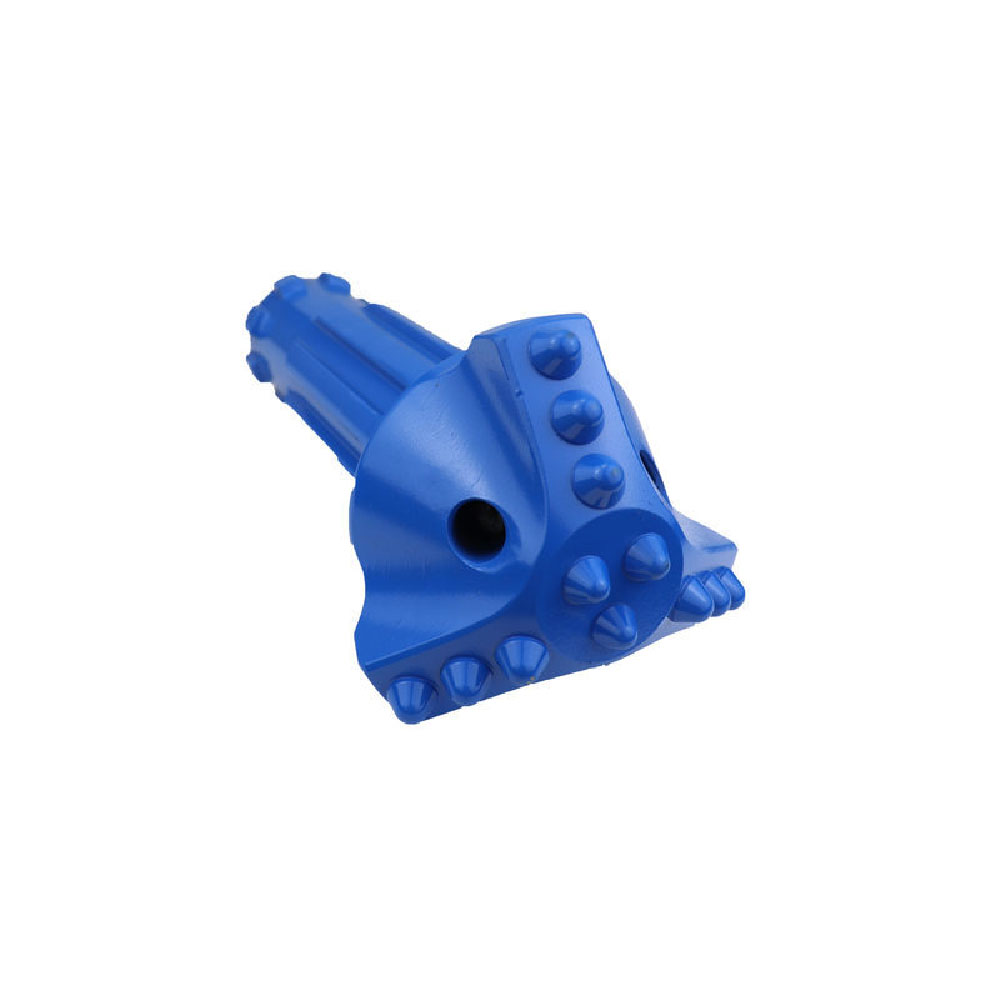

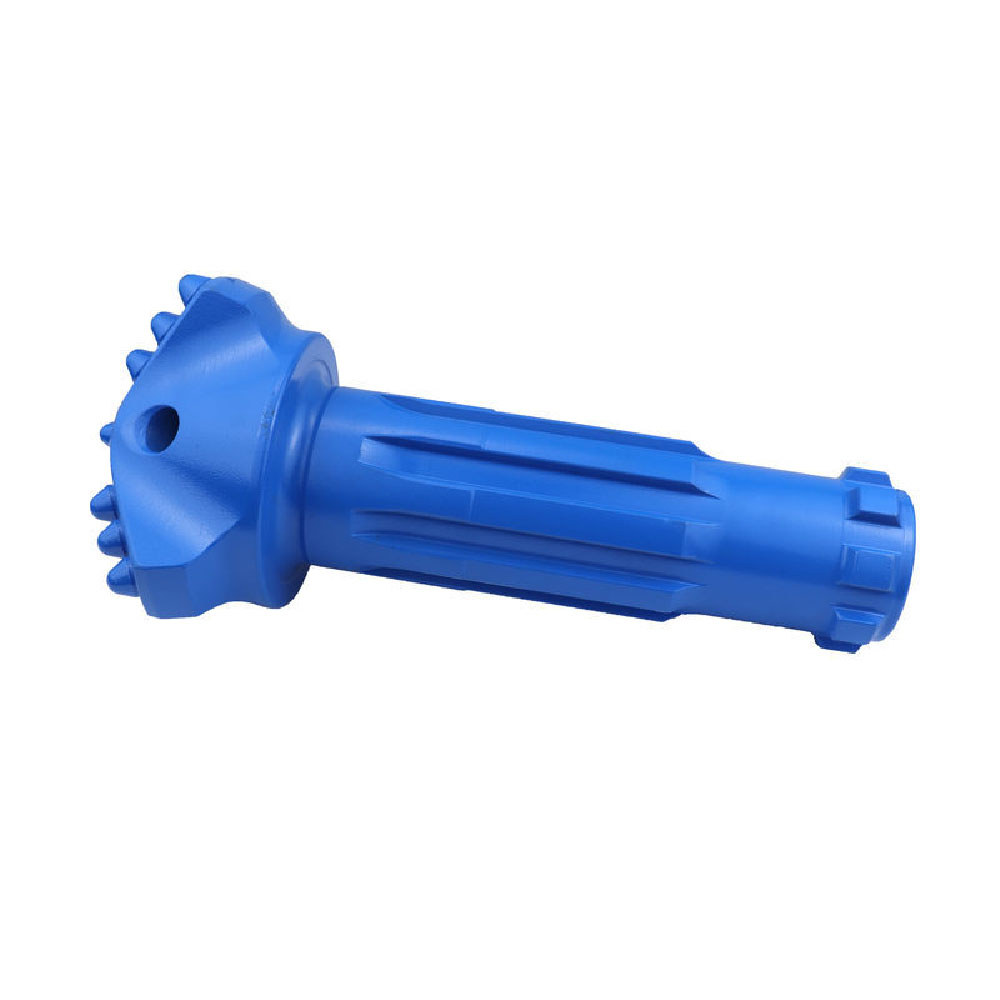

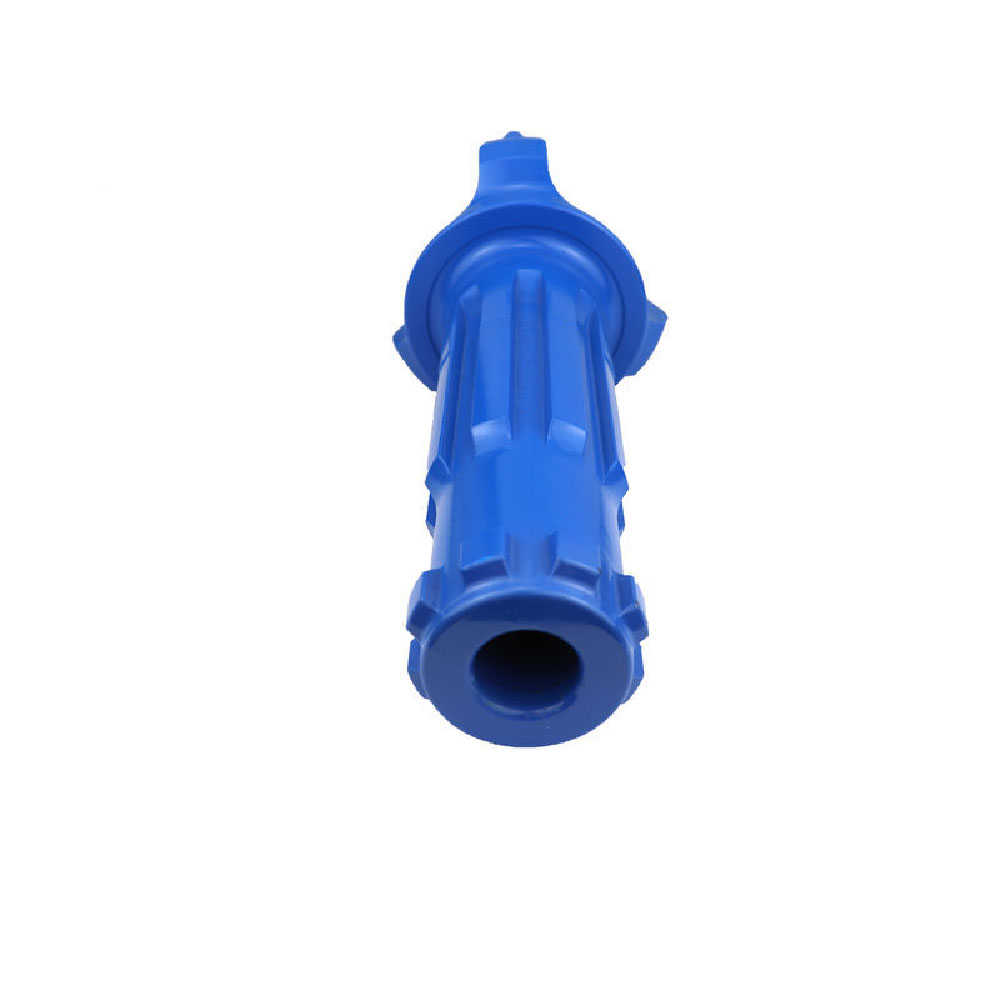

Customized DTH Drill Bits
Customized DTH Drill Bits
Technical Parameter
| Head Diameter（mm) | Port holes | Button qty.pcs*dia.mm | ||
|---|---|---|---|---|
| Button Type（Optional） | Gauge Buttons | Front buttons | ||
| 130 | 3 | Ballistic | 9*φ14 | 3*φ13 |
| 140 | 3 | Ballistic | 9*φ14 | 3*φ14 |
| 150 | 3 | Ballistic | 9*φ14 | 3*φ14 |
| 152 | 3 | Ballistic | 9*φ15 | 3*φ15 |
| 165 | 3 | Ballistic | 9*φ15 | 3*φ15 |
| 180 | 3 | Ballistic | 9*φ15 | 3*φ15 |
| 180 | 3 | Ballistic | 9*φ16 | 3*φ15 |
| 190 | 3 | Ballistic | 9*φ16 | 4*φ15 |
| 203 | 3 | Ballistic | 9*φ16 | 4*φ15 |
| 219 | 3 | Ballistic | 12*φ16 | 4*φ15 |
| 254 | 3 | Ballistic | 15*φ16 | 4*φ15 |
